Most prototyping services end when the parts are delivered. In a real industrial route, the value is making sure the prototype learning is not lost when the project moves into production tooling.
When a product development project reaches the prototype stage, the usual decision is to find the fastest or cheapest supplier available to obtain parts quickly. The reasoning seems logical: at that stage the team needs samples to validate, not a production mould.
The issue appears later, when the project moves into the production mould and a different supplier enters the process. At that point, a cost emerges that is rarely shown in the first quotation: the cost of transferring prototype know-how.
Key idea: an injection-moulded prototype does not only deliver parts. It also generates process, material, geometry, shrinkage, critical feature and adjustment knowledge. If that learning stays with another supplier, production tooling starts with less context than it could have.
The know-how lost when the supplier changes
During the development of an injection-moulded prototype, the technical team builds information that does not fully fit into a parameter sheet. Some data can be documented, but part of the value is the technical judgement developed through trials, defects, adjustments and workshop decisions.
That learning includes very practical points:
- Which injection parameters stabilised the process: temperature, filling speed, packing, pressure and cycle time.
- Where the first defects appeared and which changes corrected them.
- Which modifications were made to the prototype insert and why those decisions were taken.
- How the material behaved in shrinkage, warpage, weld lines or critical wall-thickness areas.
- Which dimensions and functions were identified as CTQs during lot validation.
A report helps, but it does not replace the direct experience of the team that solved those issues in real time. When the production mould is built by another supplier, that supplier reads the file, but did not live through the process.
Why production start-up should not begin from zero
The first start-up of a production mould is a sensitive phase: schedule pressure, committed purchasing decisions, customer expectations and little room for redesign. If the production team does not know the prototype history, it has to rediscover risks that had already appeared.
That can mean extra adjustment loops, new process trials, uncertainty about the gate position, insert corrections, repeated dimensional validation or technical discussions that had already been solved.
The cost is not only machine time. It is also engineering time, transfer meetings, launch delays and the risk of modifying a definitive mould when the issue could have been corrected earlier with more room to move.

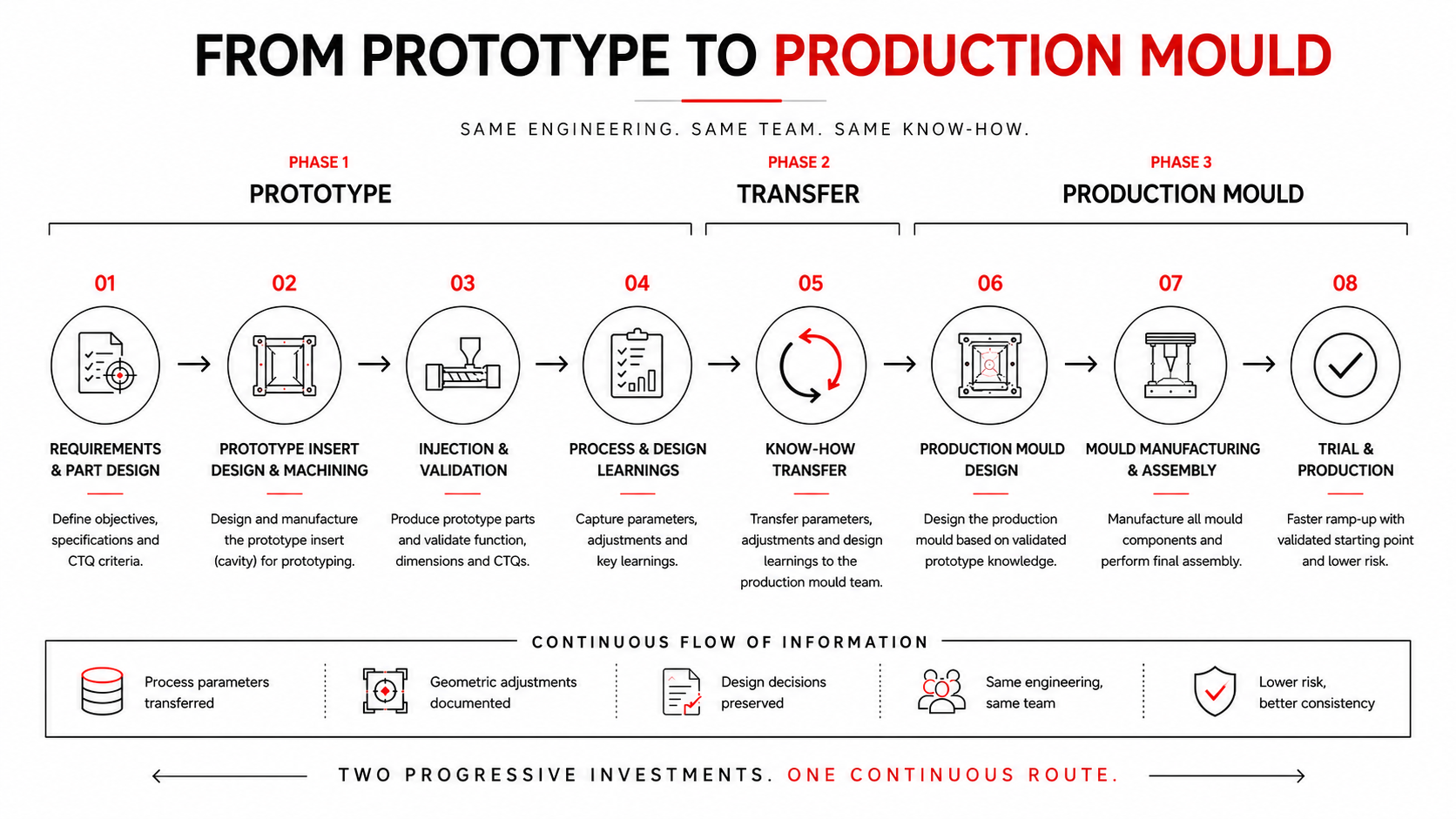

How the integrated route works in Pilot2Plant
In Pilot2Plant, prototyping and production mould manufacturing belong to the same technical route within ITM Moldes. The prototype insert is designed and machined in the same industrial environment that can later manufacture the definitive mould.
This changes the logic of the project. The prototype is not a dead end or a disconnected validation step. It is the first learning phase before investing in production tooling.
Continuity has three direct consequences:
- The process is not relearned. Prototype-lot parameters become a documented starting point for production mould start-up.
- Geometry decisions have memory. If a wall, radius, ejection feature or draft angle was adjusted, the team knows why.
- The production mould starts from a real reference. The part has already been injected with the final material and its main sensitivities are known.
The real cost of changing supplier
Comparing only the prototype price can lead to an incomplete conclusion. A cheap prototype can become expensive if the project then needs knowledge transfer, repeated trials or reopened technical decisions during production.
The real cost of changing supplier can include:
- Engineering hours to explain the prototype history to the new team.
- Mould iterations that could have been anticipated through technical continuity.
- The risk of repeating defects already solved during the prototype stage.
- Loss of agility when launch timing is already close.
- Higher uncertainty in technical materials, tight-tolerance parts or complex geometry.
This cost is not always invoiced as a separate line. It appears as weeks of adjustment, meetings, urgent changes or delays in industrial validation.
When keeping the same team creates the most value
Continuity between prototype and production matters most when the part has critical functions, technical material, tight tolerances, assemblies depending on several dimensions or demanding validation requirements.
It is also important when launch timing does not allow the team to learn twice. If the prototype has already shown how the part flows, shrinks and deforms, that information should reach production tooling intact.
The practical question: are you buying prototype parts only, or are you buying industrial learning that should later accelerate the production mould?
FAQ about the prototype-to-production route
Is it mandatory to build the production mould with ITM if Pilot2Plant is used for the prototype?
No. Pilot2Plant can deliver the technical prototype file so another supplier can continue the project. Continuity with ITM is an option to keep learning within the same team, not a commercial obligation.
What information is transferred from prototype to production mould?
Process parameters, material behaviour, detected incidents, CTQ criteria, dimensional results, cavity-design decisions and modifications made during prototype development are transferred.
Does the production mould use the same hardware as the prototype?
Not necessarily. The prototype may use a standard mould base and specific inserts, while the production mould is designed for the required volume and production strategy. What is transferred is technical knowledge, not simply hardware.
When does an integrated route pay off the most?
It pays off especially in technical parts, filled materials, tight-tolerance parts, assemblies, validation-heavy projects or launches with little room to repeat learning during production start-up.
